Installing on Windows

  1. 1. Plug the DV Dongle into an open USB 2.0 PC port.  The “Found New Hardware Wizard” should display as seen in the picture to the right.  Select “Yes, this time only” and click “Next>” to have Windows search for the appropriate FTDI driver.

  1. 2. Select “Install the software automatically” and click “Next>” to install the FT232R USB UART driver.  If the driver is not found, download the driver from http://www.ftdichip.com/Drivers/VCP.htm by clicking on the “setup executable” link on that web page.  Run the downloaded executable and the drivers will be automatically installed.

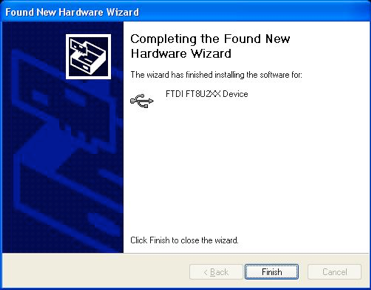

  1. 3. Click “Finish” to complete installation of the first driver.

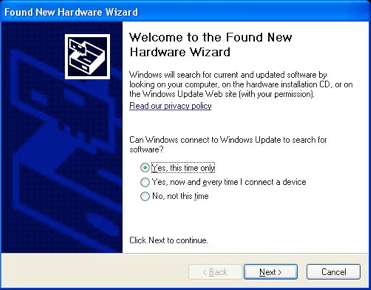

  1. 4. The “Found New Hardware Wizard” should display again as seen in the picture to the right.  Select “Yes, this time only” and click “Next>” to have Windows search for the appropriate FTDI driver.

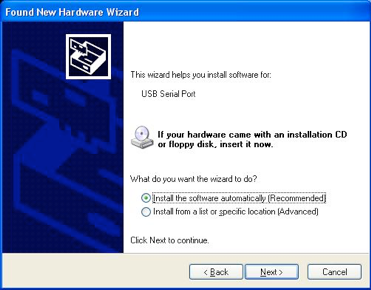

  1. 5. Select “Install the software automatically” and click “Next>” to install the USB Serial Port driver.

  1. 6. Click “Finish” to complete installation of the last driver.

  1. 7. The DV Dongle driver installation  is complete.  The green LED should be pulsing on and off.

  1. 8. Download the DVTool application archive file using a web browser by entering http://www.dvdongle.com/downloads/DVTool-dist.zip and extract the DVTool folder onto your Windows Desktop.  The folder should look similar to the picture to the right.  Double click on the file DVTool.jar.  If the application starts, you are ready to go to the Using the DV Dongle page listed at the top of this page.

  1. 9. If a dialog box similar to the one to the right is displayed, the Sun Java Runtime is not installed and must be downloaded from the Sun web site by using a web browser and entering http://java.sun.com/javase/downloads/index.jsp and selecting the JRE as shown in step 10.

  1. 10.  Select the JRE 6 as shown to the right and click “Download”.  After accepting license terms, click on the “windows online installation link” and click “Run”.

  1. 11. Click “Finish” to complete the JRE installation.  You are ready to go to the Using the DV Dongle page listed at the top of this page.

Installing on Mac OS X Leopard

  1. The DVTool application will only run on Leopard or later due to the version of Java provided by Apple.  Install FTDI drivers from http://www.ftdichip.com/Drivers/VCP.htm prior to connecting the DVDongle.  Once installed, plug in the DV Dongle and download the DVTool tarball at http://www.dvdongle.com/downloads/DVTool-dist.tgz and extract to your Desktop.  You can then proceed to the Using the DV Dongle page listed at the top of this page.  Note that special drivers from FTDI are required for multi CPU Mac’s.

Installing on Linux

  1. Drivers for the FTDI USB chip used by the DV Dongle are included in most Linux distributions.  Install the Sun Java Runtime (JRE) 6 from http://java.sun.com/javase/downloads/index.jsp and make sure that this version is selected in your PATH environment variable.  Once installed, plug in the DV Dongle and download the DVTool tarball at http://www.dvdongle.com/downloads/DVTool-dist.tgz and extract to your Desktop.  Run dvtool.sh to start the DVTool application.  Note that some distributions like Ubuntu include an accessibility package called brltty that must be uninstalled before DV Dongle use.
